Zeroing Parameters Settings



  1. Press and hold МENU (6) button to enter the main menu.
  2. Press UP (7)/DOWN (5) buttons to select the Zeroing  menu item and enter by briefly pressing МENU (6) button – the zeroed distances are displayed.
  3. The values (e.g., +7.0) shown on the right of the distance values, stand for the number of clicks along the Y axis, at which the reticle position at other distances differs from the reticle position in the primary distance.
  4. To zero at any distance again, press UP (7)/DOWN (5) buttons to select the required distance and briefly press МENU (6).
  5. Press UP (7)/DOWN (5) buttons to select the Zeroing Parameters Settings  and enter by briefly pressing МENU (6).

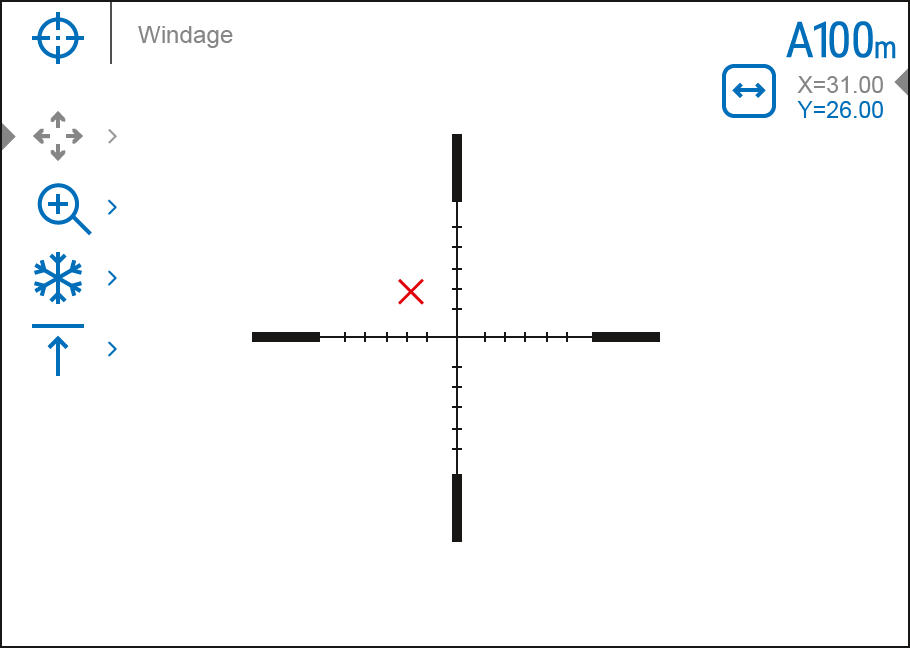

  6. Zeroing screen, which allows the change of zeroing coordinates, will appear.
