Mounting Attachment on Optical Riflescope



1. Remove the eyepiece cover (2).

2. Select the Ring Adapter (12) (sold separately) with the insert (11) of the required diameter depending on the outer diameter of the lens of your riflescope (10) (see Table). The designation 42 mm / 50 mm / 56 mm in the name of the adapter means the lens diameter of the riflescope.

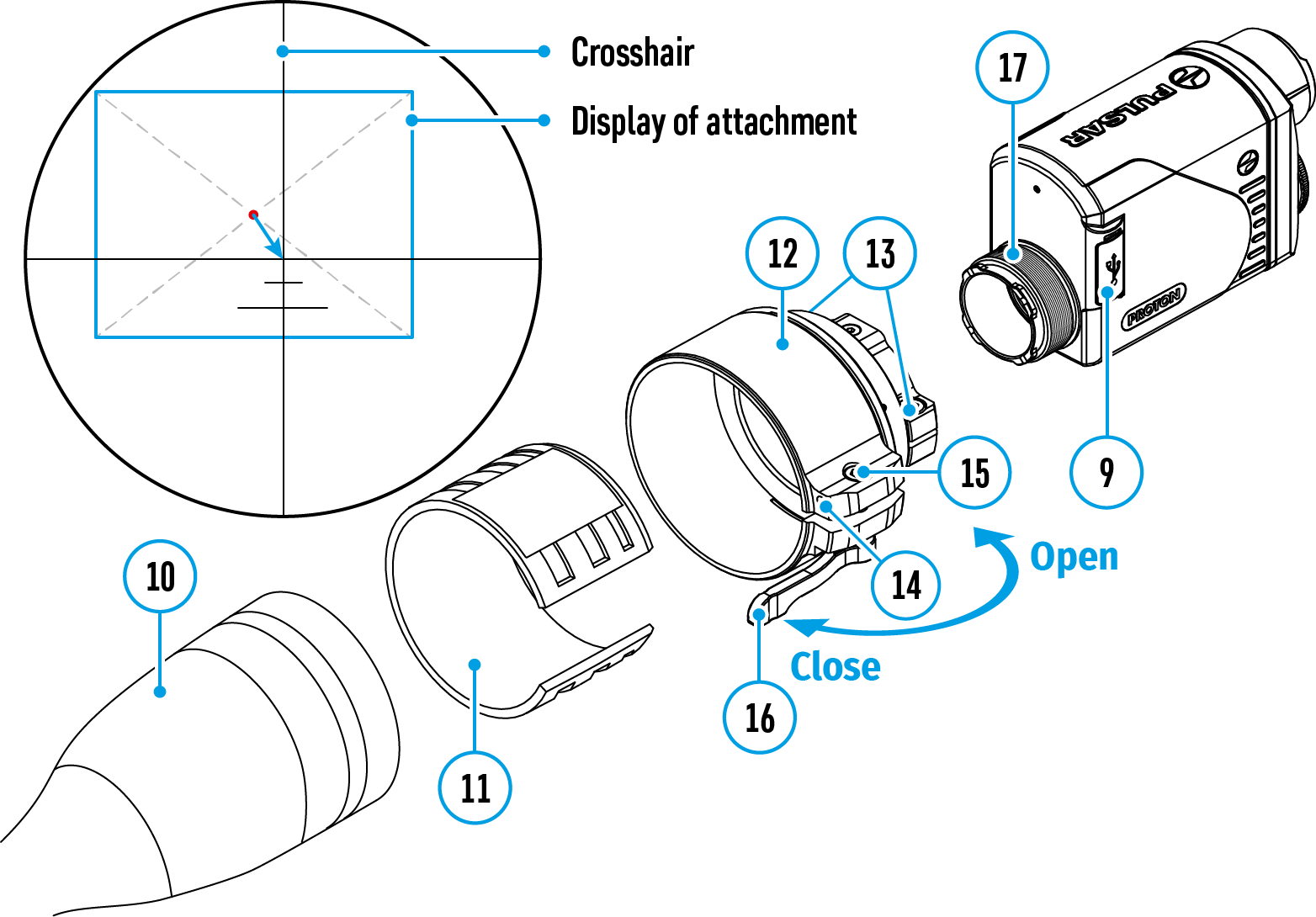

3. Screw together the Ring Adapter (12) and the attachment along the threads of the mounting area (17) until it stops. Then untighten a little (no more than one turn) so that the lever (16) is on the right side (see Figure).

4. Evenly tighten the screws (13) until the ball joint grips in the Ring Adapter (12).

5. Apply 2-3 strips of double-sided tape to the outer surface of the insert (11) of your choice.

6. Push the insert (11) of your choice into the Ring Adapter (12) until it stops.

7. Move the lever (16) to the OPEN position.

8. Before installing the Ring Adapter (12) onto the riflescope, it is recommended to degrease the lens body of the riflescope (10).

9. Mount the Ring Adapter (12) with the insert (11) onto the lens of the daylight riflescope (10) as far as it will go.

10. If the Ring Adaptor (12) with the insert (11) selected according to the table cannot be mounted onto the lens (10), follow the steps below:

  • Loosen the locking screw (14) with a 2mm Allen key.
  • Untighten the screw (15) with a hex wrench (S = 4mm) until the Ring Adaptor with the insert can be mounted onto the lens (10).

11. Move the lever (16) from its initial OPEN position to the CLOSE position.

12. Loosen the locking screw (14) with a 2mm Allen key, if it hasn’t been done before.

13. Tighten the screw (15) using a 4mm Allen key. The clamping force should be 1.5-2 Nm (use a torque screwdriver) to ensure the lever is correctly tightened (16), while the Ring Adapter with the attachment should not move relative to the body of the riflescope (10). If necessary, tighten or loosen the screw (15) to operate the lever (16) in the best way possible.

14. Tighten the locking screw (14) as far as it will go.

15. Turn on the attachment by briefly pressing the ON/OFF (6) button.

16. Align the display center with the crosshairs of the reticle by tilting the attachment.

17. Align top and bottom display boundaries parallel to the horizontal axis of the riflescope by turning the attachment clockwise or counterclockwise.

18. Having reached the best possible position of the attachment, tighten the two screws (13) until stop. The clamping force should be 6.5-7.5 N·m (use a torque screwdriver to check).



Selection Table for Riflescope Inserts

Ring Adapter model

The internal diameter of the insert needs to match the outer diameter of the objective lens housing of the riflescope it is being installed on.

Insert internal diameter, mm

Suitable for lens housing of riflescopes with an outer diameter of, mm

PSP Ring Adapter 42 mm

45.5

45.5

46

46

46.5

46.5

47

46.7-47.6

48

47.7- 48.6

49

48.7-49.6

50

49.7-50.6

PSP Ring Adapter 50 mm

51.6

51.6

53.4

53.4

55

54.7-55.6

56

55.7-56.6

57

56.7-57.6

58

57.7-58.6

59

58.7-59.6

PSP Ring Adapter 56 mm

60

59.7-60.6

61

60.7-61.6

62

61.7-62.6

63

62.7-63.6

64

63.7-64.6

65

64.7-65.6
