Thermion 2 LRF XP50 Pro
Thermion 2 LRF XP50 Pro

Table of contents

Enter the Main Menu

  1. Enter the main menu with a long press of the controller button (6).
  2. To move through the main menu items, rotate the controller ring (6).
  3. Press the controller button (6) briefly to open subitems of the main menu.
  4. Press and hold the controller button (6) to exit from a subitem of the main menu.
  5. Automatic exit from the main menu occurs after 10 seconds of inactivity.

Note: When entering the main menu, the background image darkens to enhance the menu visibility. This is normal and not a defect.

General View of the Menu

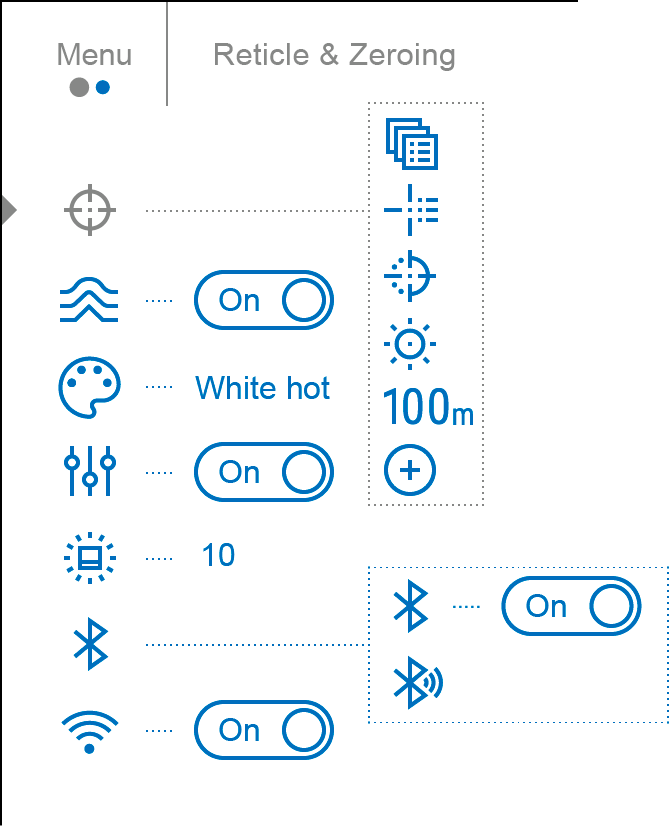

Tab 1

Tab 2
