Zeroing Parameters Settings

Zeroing Parameters Settings

  1. Press and hold the controller button (6) to enter the main menu.
  2. Rotate the controller ring (6) to select Reticle & Zeroing in the menu. Briefly press the controller button (6)  to select it. Zeroed distances are displayed below.
  3. The values (e.g., +7.0  -15.0) shown on the right of the distance values, stand for the number of clicks along the Y axis for digital and thermal channels, at which the reticle position at other distances differs from the reticle position in the primary distance. Icons  and  indicate that the channels have not been zeroed.
  4. To zero at any distance again, rotate the controller ring (6) to select the required distance and briefly press the controller button (6).
  5. Rotate the controller ring (6) to select the Zeroing Parameters Settings and enter by briefly pressing the controller button (6).

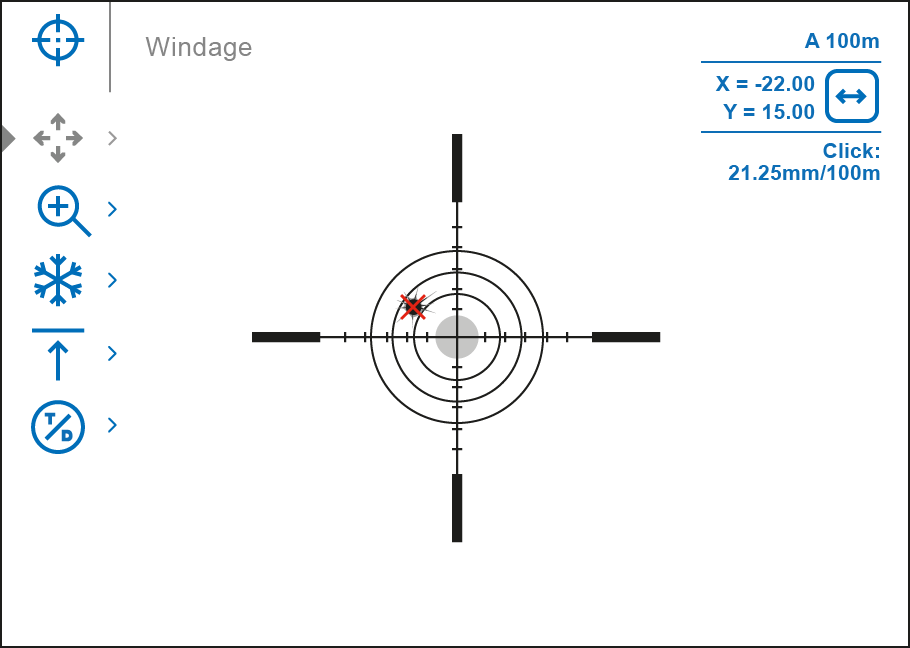

  6. Zeroing screen, which allows the change of zeroing coordinates, will appear:
