Weaver LQD Rifle Mount
Manual
Weaver LQD Rifle Mount

Table of contents

Installation Procedure


Important

Mounting slots in the riflescope base enable installation of the rifle mount in various different positions. Choosing the rifle mount position helps to ensure correct eye relief, depending on the type of hunting shotgun.


Installation

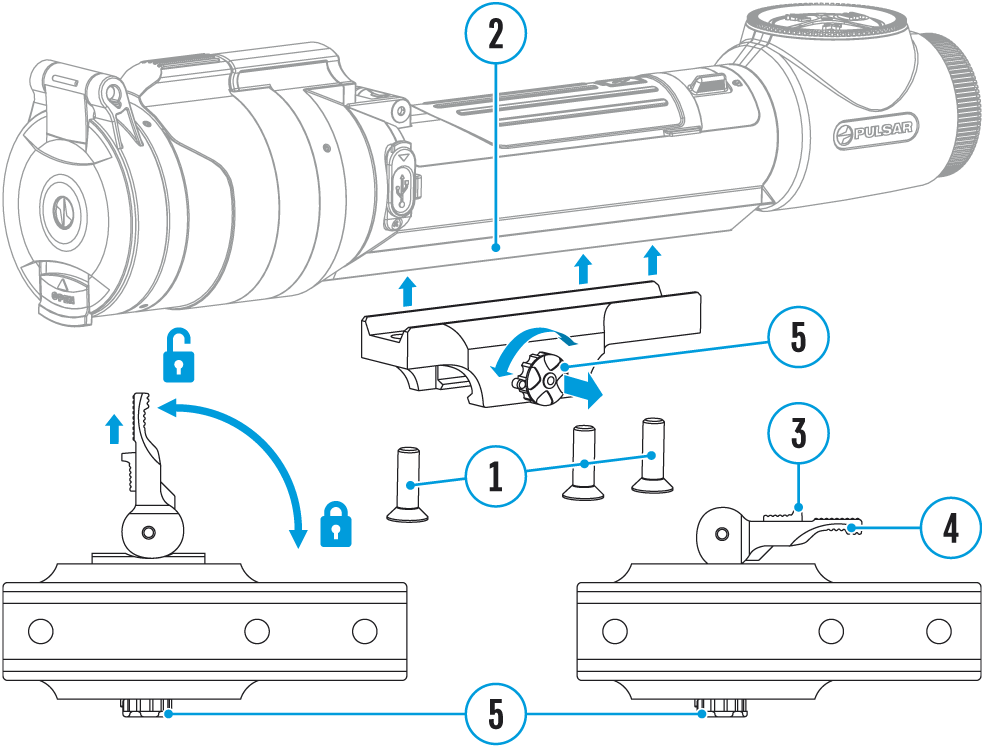

1. Attach the rifle mount to the riflescope base (2) using a T30 Torx wrench and screws (1) (clamping force – 4 Nm/35.4 in-lbs).

2. Pull the lock (3) to the side and turn the clasp (4) to the Open position while holding the lock.

3. Mount the riflescope on the weapon rail and make sure the selected position is comfortable.

4. Remove the riflescope from the weapon rail.

5. Unscrew the screws one by one, apply a drop of threadlocker (e.g. Loctite 638) and screw back until it stops (clamping force – 4 Nm/35.4 in-lbs). Allow the threadlocker to dry as required.

6. Install the rifle mount with a riflescope on the weapon rail.

7. Move the clasp (4) to the Closed position .

8. If there is any backlash, do the following:

  • Move the clasp (4) to the Open position  and push it until the adjusting nut (5) disengages from the stopper.
  • Keeping the clasp (4) pressed, turn the adjusting nut (5) clockwise.
  • Check the clasp (4) fixation by moving it back to the Closed position . The clasp (4) should move with little effort. There should be no backlash of the riflescope relative to the weapon rail.
  • If necessary, loosen or tighten the adjusting nut (5) as described above.

9. Move the clasp (4) to the Open position , the rifle mount should be easy to remove from the rail.

10. The riflescope is ready for zeroing.
