Manual
Digex

Table of contents

Zeroing Parameters Settings

  1. Press and hold the controller button (6) to enter the main menu.
  2. Rotate the controller ring (6) to select the Zeroing  menu item and enter by briefly pressing the controller button (6) – the zeroed distances are displayed.
  3. The values (e.g., +7.0) shown on the right of the distance values, stand for the number of clicks along the Y axis, at which the reticle position at other distances differs from the reticle position in the primary distance.
  4. To zero at any distance again, rotate the controller ring (6) to select the required distance and briefly press the controller button (6).
  5. Rotate the controller ring (6) to select the Zeroing Parameters Settings  and enter by briefly pressing the controller button (6).

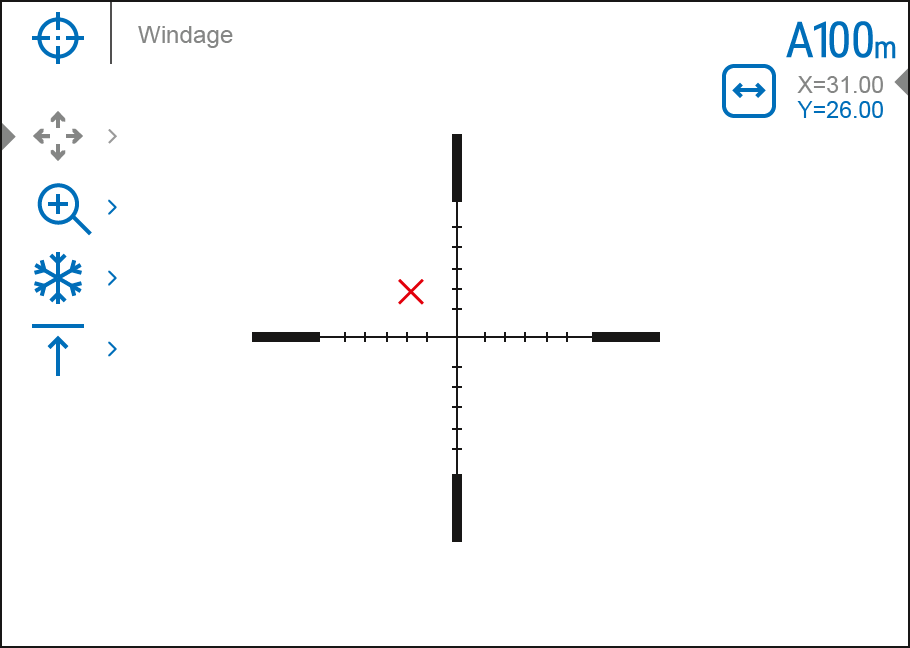

  6. Zeroing screen, which allows the change of zeroing coordinates, will appear.
