APS 5 Battery Pack
Manual
APS 5 Battery Pack

Table of contents

Battery Charging

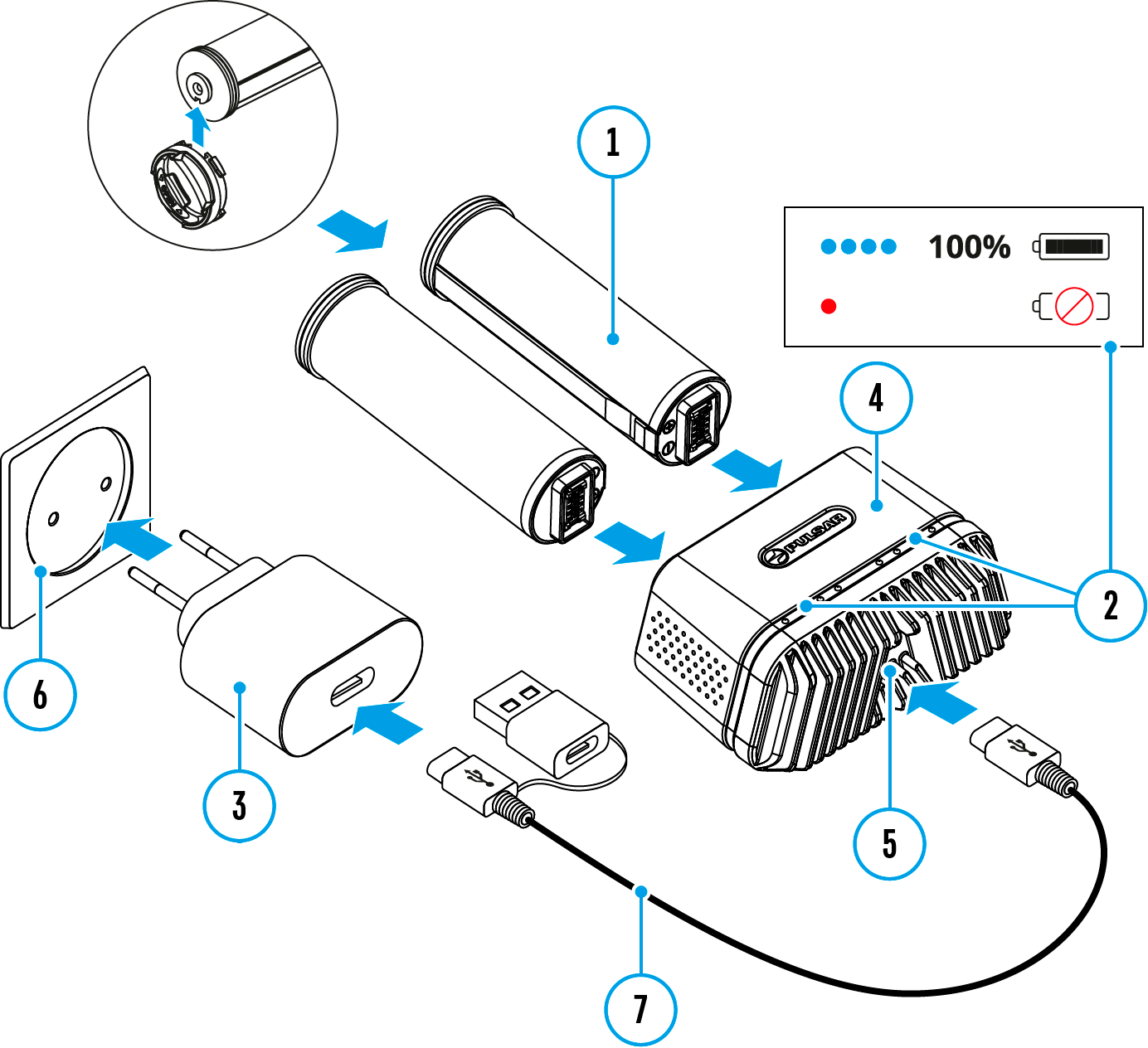

  1. Insert the battery (1) along the guide to the stop into the APS 5* charger slot (4) (see. Fig.).
  2. Connect the plug of the USB Type-C cable* (7) to the USB Type-C connector of the power adapter* (3). Plug the power adapter (3) into a socket 100-240 V (110 V for US) (6).
  3. Connect the other end of the USB Type-C cable to the USB Type-C connector (5) of the charger (4) by removing the USB Type-A adapter.
  4. LED indication (2) will display battery charge level (see Table).
  5. Two batteries can be charged at the same time: the second slot is designed for it.

LED indication (2) in the battery charging mode

Battery Level

Battery charge level is from 0% to 25%

Battery charge level is from 26% to 50%

Battery charge level is from 51% to 80%

Battery charge level is from 81% to 99%

Battery is fully charged. Charging will automatically stop. The battery can be disconnected from the charger.

Defective battery. Do not use the battery!

LED indication (2) in the standby mode**

Battery Level

Battery charge level is from 0% to 25%

Battery charge level is from 26% to 50%

Battery charge level is from 51% to 80%

Battery charge level is from 81% to 99%

Battery is fully charged. It can be disconnected from the charger.

Defective battery. Do not use the battery!

Attention! When using a power adapter that does not support USB Power Delivery fast charging technology, the flicker frequency of LED indicators is reduced by 3 times.

Attention! The charger heats up during fast charging. Excess heat is removed through the radiator and does not affect the device operation.

* Purchased separately or supplied as package contents of a device.

** Standby mode – an operating mode in which batteries are inserted into the charger, but the power adapter is not connected. In this mode, the indication is on for 10 seconds.
