Krypton 2 XQ/XG
Manual
Krypton 2 XQ/XG

Table of contents

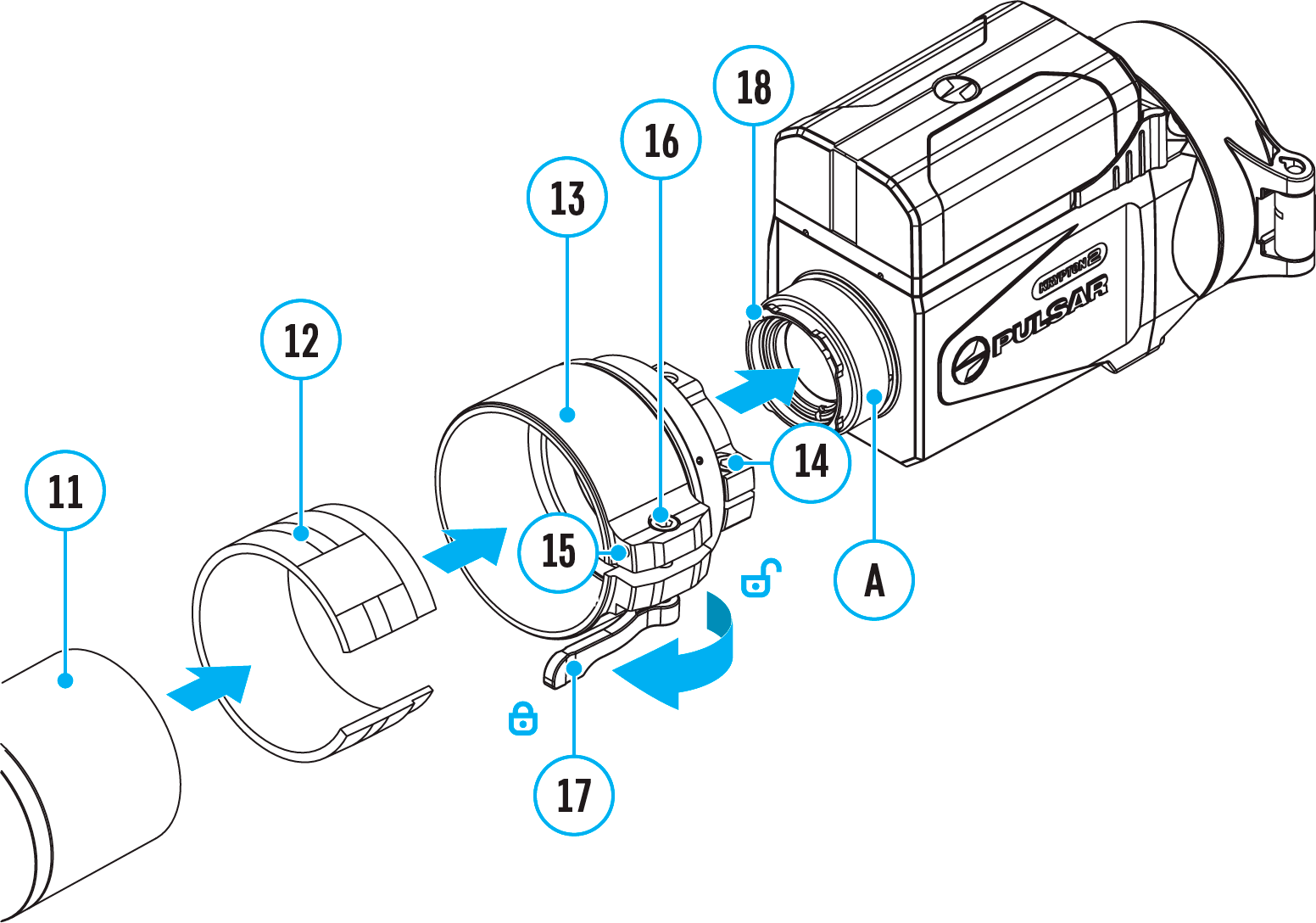

Mounting the Adapter on the Device



Note: if you wish to use a third-party adapter or a Pulsar PSP Ring Adapter, unscrew the ring (A) near the mount assembly (18)


Step 1. Pick up an insert

  1. Select the Ring Adapter (13) (sold separately) with the insert (12) of the required diameter depending on the outer diameter of the lens of your optical device (11) (see Table).
  2. The designation 42 mm / 50 mm / 56 mm in the name of the adapter means the lens diameter of the optical device.

For installation of the PSP-30B adapter, see its operating manual.

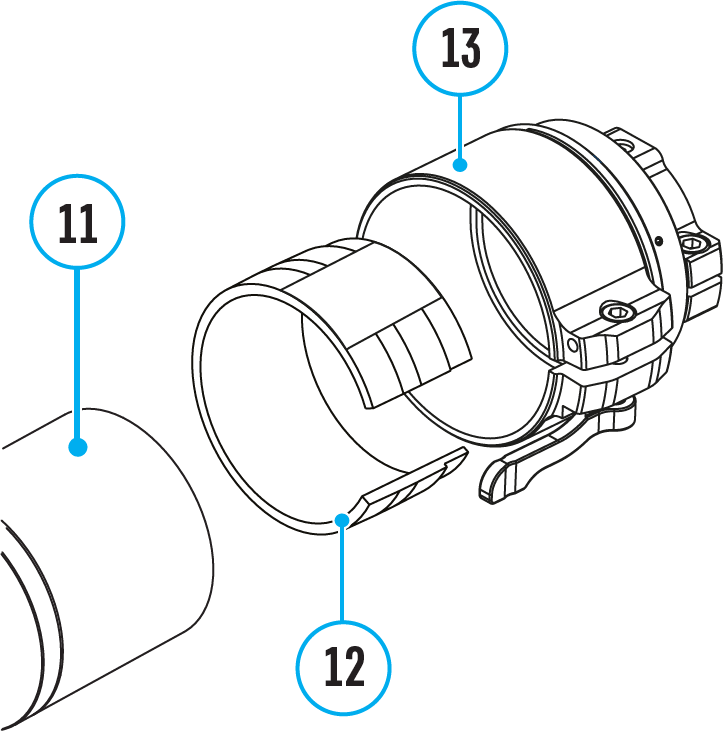

Step 2. Install the insert into the adapter

  1. Apply 2-3 strips of double-sided tape to the outer surface of the insert of your choice (12).
  2. Push the insert (12) of your choice into the Ring Adapter (13) until it stops.

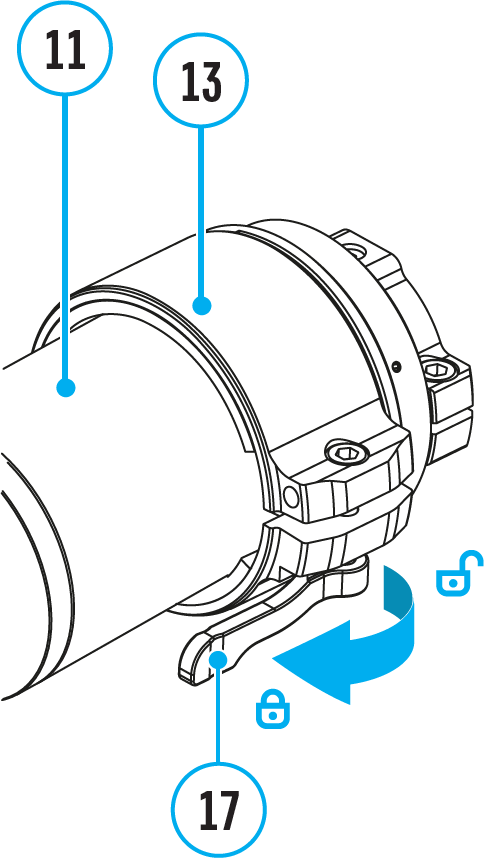

Step 3. Mount the adapter on the optical device

  1. Move the lever (17) to the OPEN  position.
  2. Before installing the Ring Adapter (13) onto the optical device, it is recommended to degrease the lens body of the optical device (11).
  3. Mount the Ring Adapter (13) with the insert (12) onto the lens of the daylight optical device (11) as far as it will go.

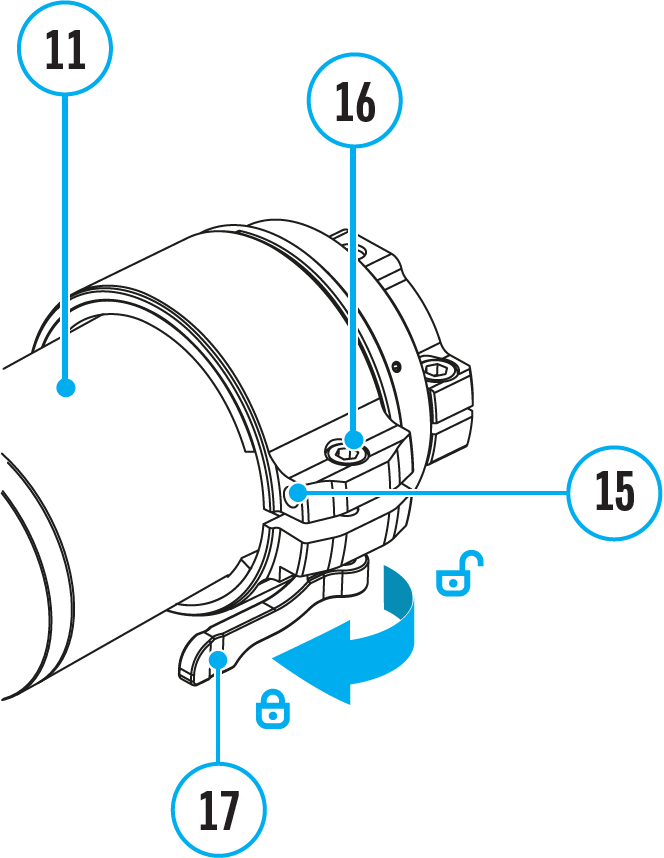

Step 4. Adjust adapter lever

  1. Move the lever (17) from its initial OPEN  position to the CLOSE  position.
  2. Loosen the locking screw (15) with a 2mm Allen key*.
  3. Tighten the screw (16) with a 4mm Allen key*. The clamping force should be 1.5-2 Nm (13.3-17.7 in-lbs) (use a torque screwdriver) to ensure the lever (17) is correctly tightened, while the Ring Adapter should not move relative to the body of the optical device (11). If necessary, tighten or loosen the screw (16) to operate the lever (17) in the best way possible.
  4. Tighten the locking screw (15) as far as it will go.

*Items of PSP B Ring Adapter (available separately)


Selection table for optical device inserts

Ring Adapter model

The internal diameter of the insert needs to match the outer diameter of the objective lens housing of the daylight optical device it is being installed on

Insert internal diameter, mm

Suitable for lens housing of daylight optical device with an outer diameter of, mm

PSP 42B Ring Adapter 42 mm

(SKU 79206)

45.5

45.5

46

46

46.5

46.5

47

46.7-47.6

48

47.7-48.6

49

48.7-49.6

50

49.7-50.6

PSP 50B Ring Adapter 50 mm

51.6

51.6

53.4

53.4

55

54.7-55.6

56

55.7-56.6

57

56.7-57.6

58

57.7-58.6

59

58.7-59.6

PSP 56B Ring Adapter 56 mm

60

59.7-60.6

61

60.7-61.6

62

61.7-62.6

63

62.7-63.6

64

63.7-64.6

65

64.7-65.6
