Battery Charging

The Telos LRF thermal imager comes with an LPS7i rechargeable Lithium-ion battery. LPS7i batteries support USB Power Delivery fast charging technology when using a standard charging set (USB Type-C cable, power adapter). Before first use, make sure the battery is fully charged. LPS 7i batteries also support wireless charging.

The icon  in the status bar will flash when the battery is low. The battery needs to be charged.

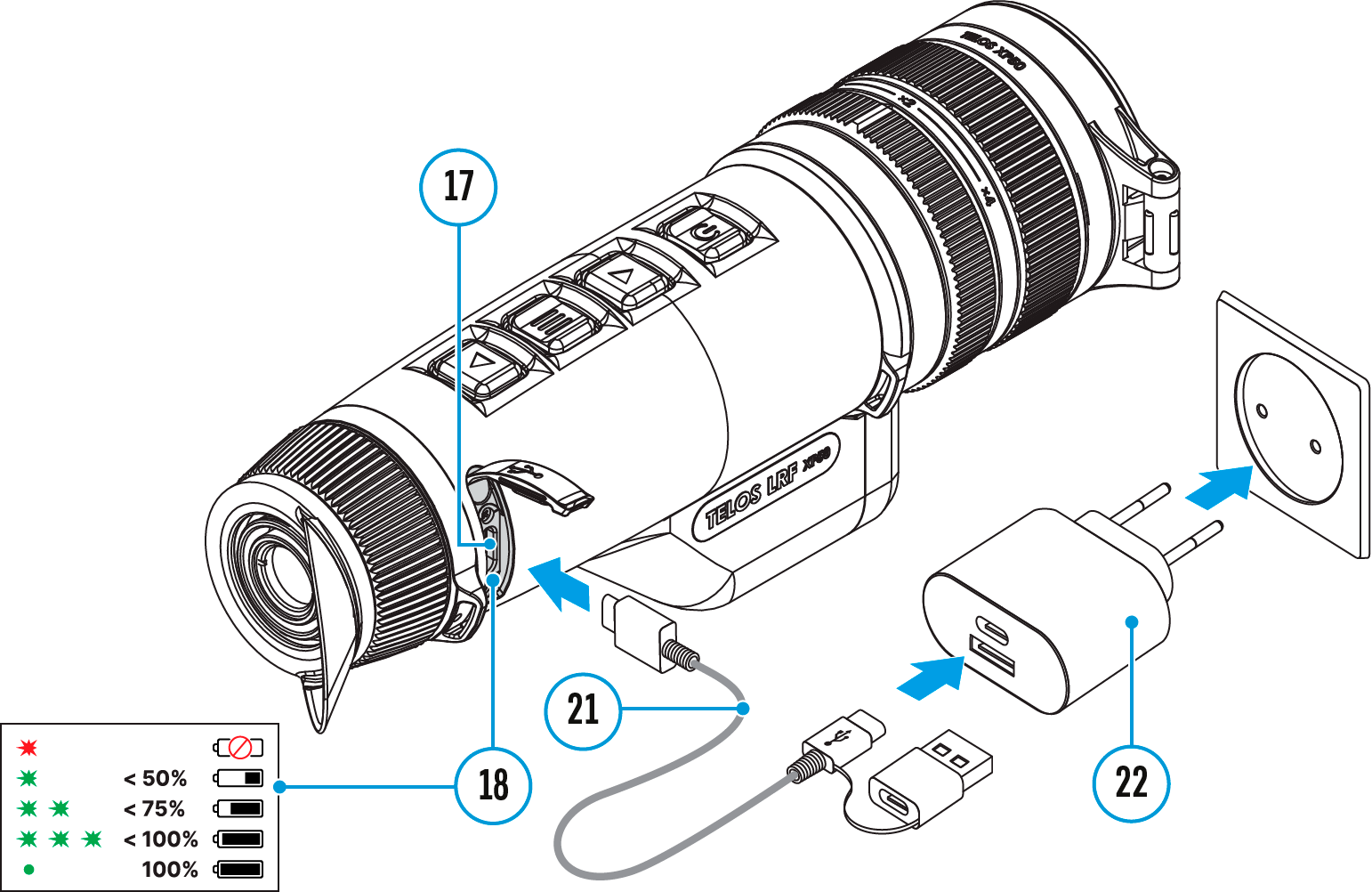

Option 1. USB Charging

  1. Install the LPS7i battery in the battery compartment of the device.
  2. Connect the USB cable (21) to the USB Type-C connector (17) of the device.
  3. Connect the other end of the USB cable (21) to the Power Adapter (22) by removing the USB Type-A adapter.
  4. Plug the Power Adapter (22) into a 100-240 V socket.
  5. Wait until the battery is fully charged (indication in the status bar: ).

If the device is off, the LED indicator (18) will display the battery charge status:

LED indication

Battery charge status

Battery defective. Do not use the battery!

Battery charge level is from 0% to 50%

Battery charge level is from 51% to 75%
Battery charge level is from 76% to 99%

Battery is full

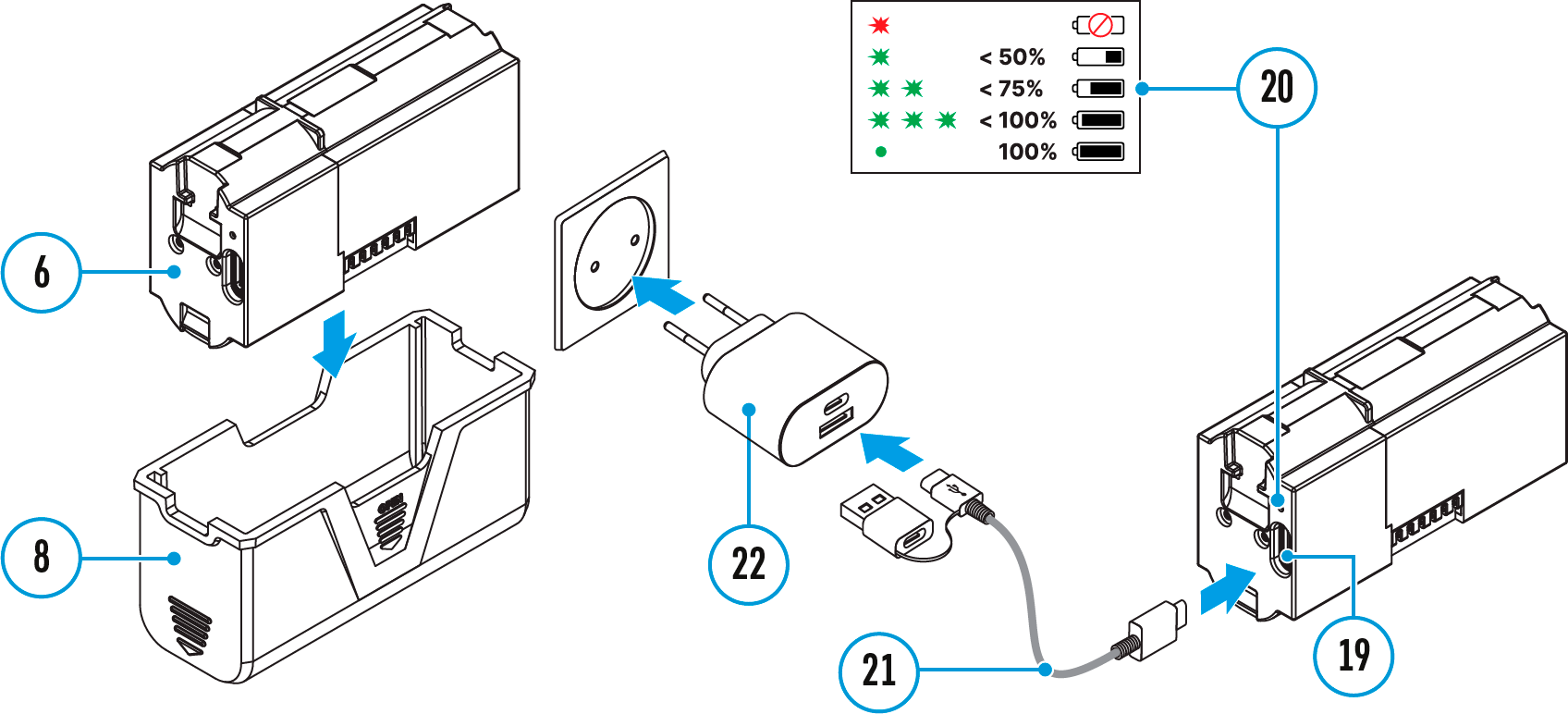

Option 2. Charging the battery via USB

  1. Remove the protective cover (8).
  2. Connect the plug of the USB Type-C cable (21) to the USB Type-C connector (19) of the battery.
  3. For fast charging, connect the second end of the USB Type-C cable (21) to the Type-C connector of the power adapter (22) by removing the Type-A adapter from the plug. When connected to a computer or a Type-A power adapter, the battery will charge at normal speed.
  4. Plug the power adapter (22) into a 100-240 V socket.
  5. LED (20) will display battery charge level (see Table).

LED indication

Battery charge status

Battery defective. Do not use the battery!

Battery charge level is from 0% to 50%

Battery charge level is from 51% to 75%
Battery charge level is from 76% to 99%

Battery is full

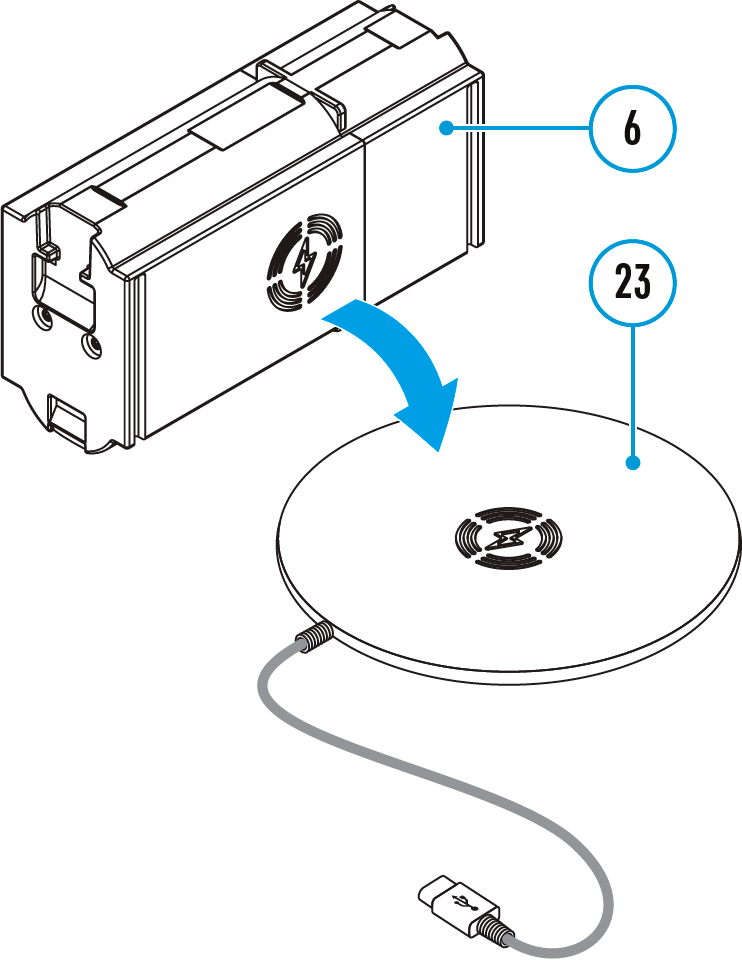

Option 3. Wireless Charging

  1. Place the battery (6) with the sign side on the wireless charger* (23). For more efficient wireless charging, align the lightning bolt icon on the battery with the centre of the charger platform (23).
  2. Turn on the wireless charger according to its instruction manual.
  3. LED (20) will display battery charge level (see Table).

* Third party-purchasing. The LPS7i battery works with all QI standard wireless chargers.

Note: Charging with a USB cable is significantly faster than using a wireless charger.
