Battery Charging

The Proton FXQ30 thermal imaging attachment comes with an APS 5 rechargeable Lithium-ion battery. APS 5 batteries support USB Power Delivery fast charging technology when using a standard charging set (charger, USB Type-C cable, power adapter). Before first use, make sure the battery is fully charged.





Option 1

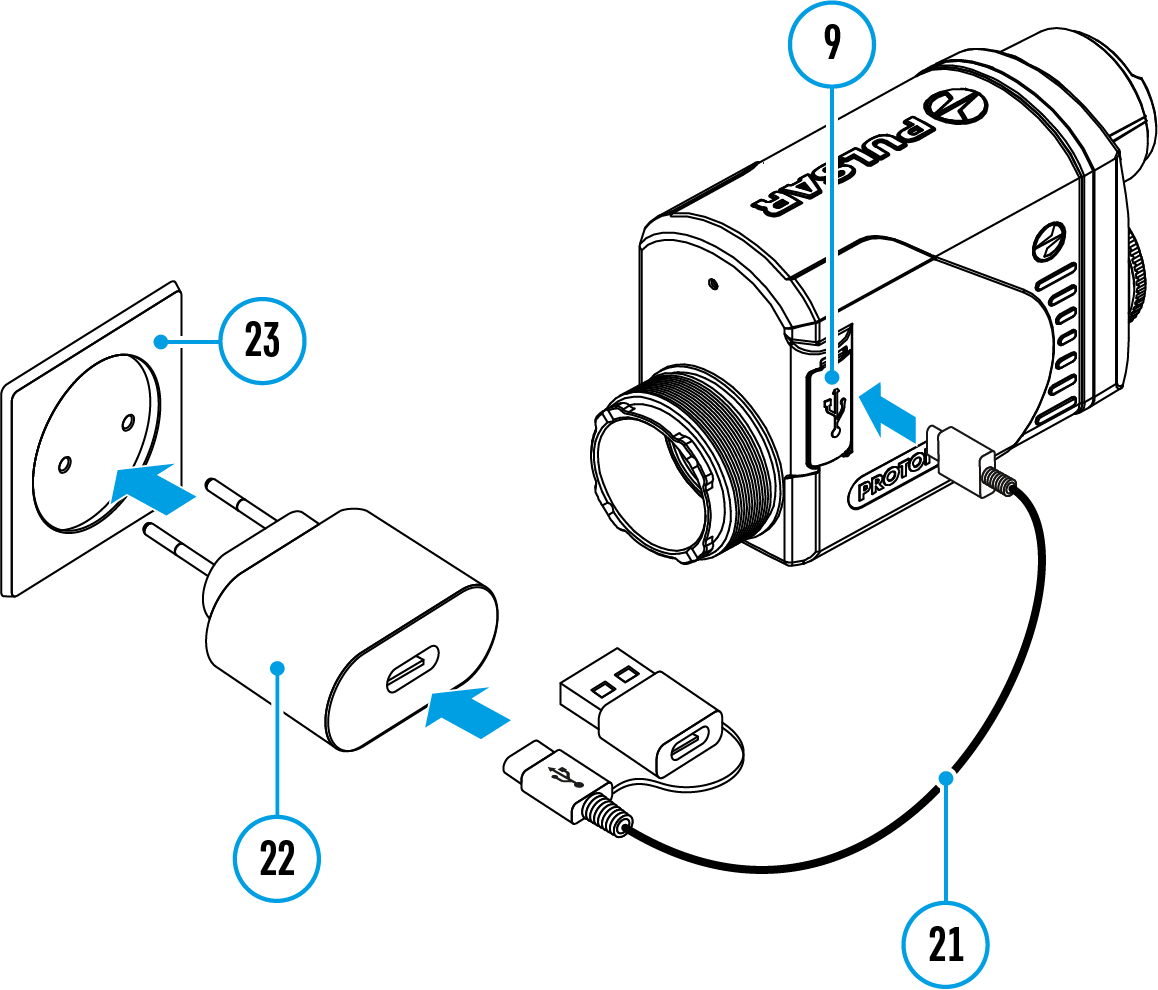

  1. Install the APS 5 battery (4) in the battery compartment (5) of the device.
  2. Connect the USB cable (21) to the USB Type-C connector (9) of the device.
  3. Connect the other end of the USB cable (21) to the Power Adapter (22) by removing the USB Type-A adapter.
  4. Plug the Power Adapter (22) into a 100-240 V socket (23).



Option 2

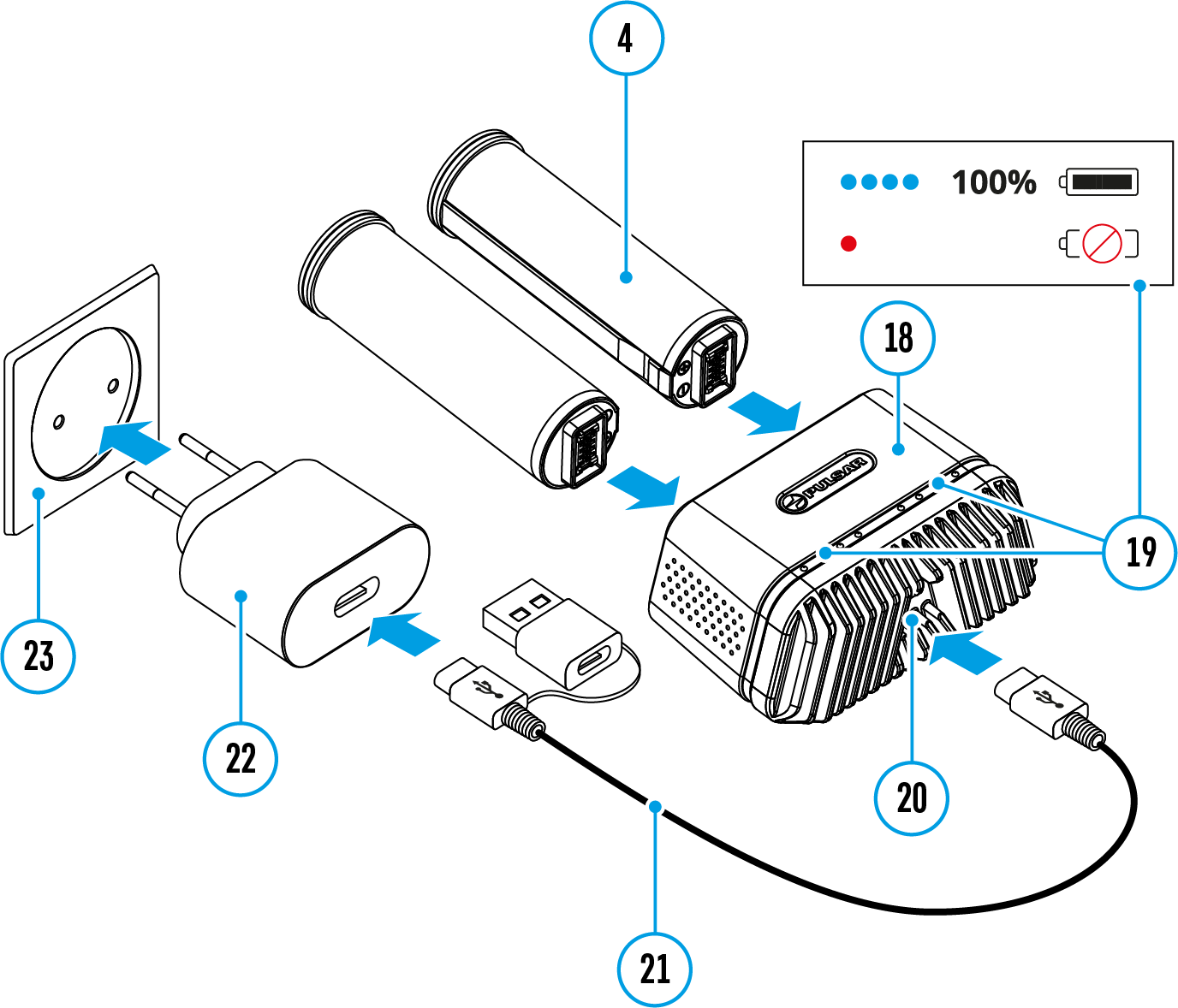

  1. Insert the APS 5 battery (4) along the guide into the APS 5 charger* (18) slot as far as it will go.
  2. Connect the plug of the USB Type-C cable (21) to the USB Type-C connector of the Power Adapter (20) by removing the USB Type-A adapter.
  3. Plug the Power Adapter (22) into a 100-240 V socket (23).
  4. Connect the other end of the USB Type-C cable (21) to the USB Type-C connector (20) of the charger.
  5. LED indicators (19) will display the battery charge level (see Table).


Note: Two* batteries can be charged at the same time.

LED indication (19) in the battery charging mode

Battery Level

Battery charge level is from 0% to 25%

Battery charge level is from 26% to 50%

Battery charge level is from 51% to 80%

Battery charge level is from 81% to 99%

Battery completely charged. Charging will automatically stop. The battery can be disconnected from the charger.

Defective battery. Do not use the battery!

LED indication (19) in the standby mode**

Battery Level

Battery charge level is from 0% to 25%

Battery charge level is from 26% to 50%

Battery charge level is from 51% to 80%

Battery charge level is from 81% to 99%

Battery is fully charged. It can be disconnected from the charger.

Defective battery. Do not use the battery!

* Sold separately.

** Standby mode is when the batteries are in the charger but the Power Adapter is not connected. In this mode, the indicators are only on for 10 seconds.

Attention! When using a Power Adapter that does not support USB Power Delivery fast charging technology, the flicker frequency of the LED indicators decreases by a factor of 3 and the charge time increases.

Attention! The charger heats up during fast charging. Excess heat is removed through the radiator and does not affect the device operation.
