Digisight Ultra LRF

Table of contents

Battery Charging

Digisight Ultra LRF riflescopes are supplied with a rechargeable Li-Ion Battery Pack IPS 7A which allows operation for up to 6 hours. Please remember to charge the Battery Pack before first use.



Charging

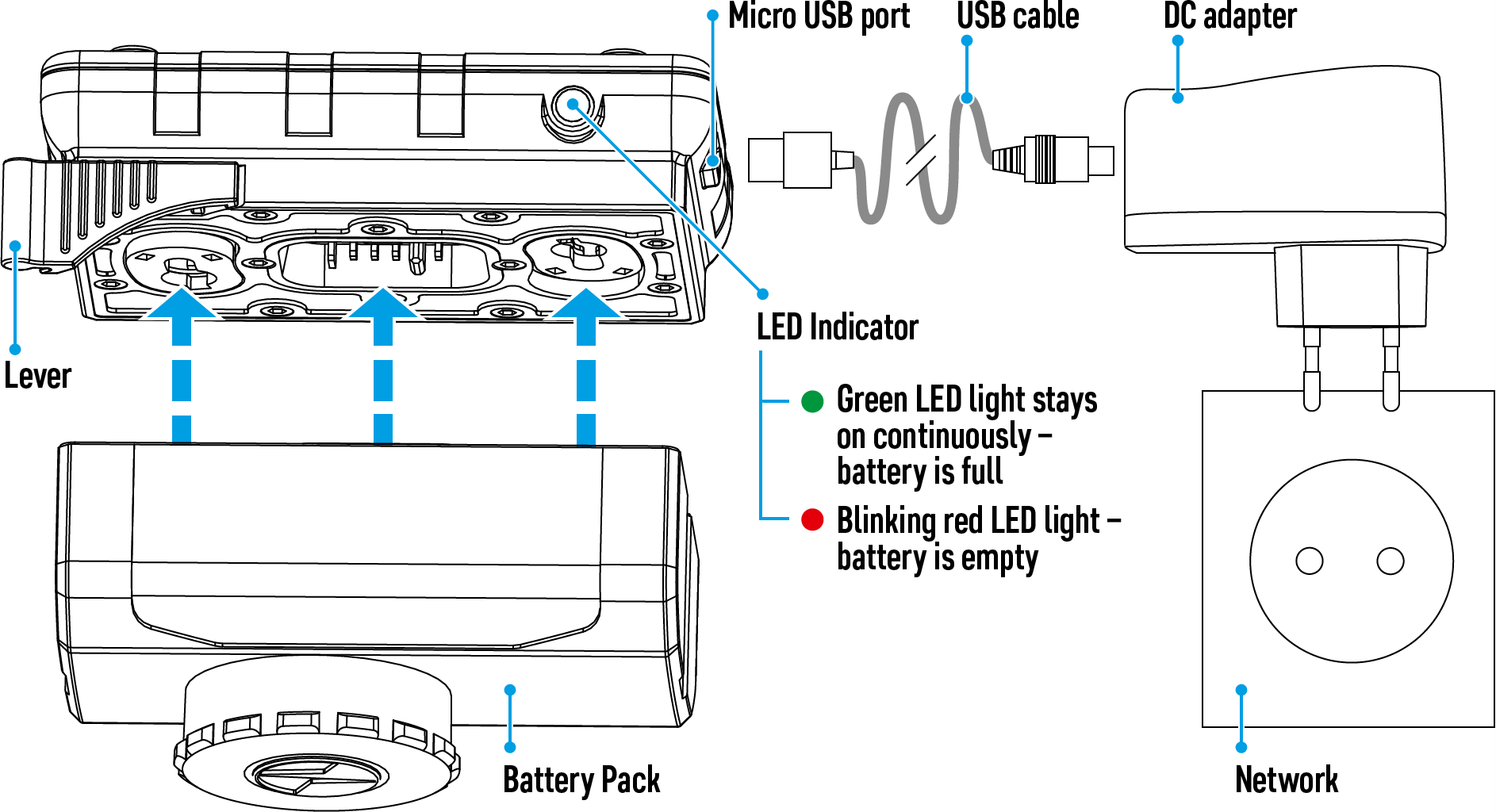

Step 1. Install the battery into the charger

  1. Lift the lever of the charger.
  2. Remove the protective cover from the Battery Pack.
  3. Install the Battery Pack into the charger.
  4. Click the lever.

Step 2. Сheck the current battery level

  • Upon installation, a green LED indicator on the charger will start to glow and begin flashing*:

- once if the battery charge ranges from 0% to 50%;

- twice if the battery charge ranges from 51% to 75%;

- three times if the battery charge ranges from 76% to 100%;

  • If the indicator lights green continuously, the battery is fully charged.
  • You can remove the battery from the charger by lifting the lever.
  • If the indicator of the charger lights red continuously upon battery installation, probably the battery's charge level is lower than acceptable (the battery has been long in deep discharge). Keep the battery in the charger for a long time (up to several hours), remove and re-insert it.
  • If the indicator starts blinking green, the battery is good.
  • If the indicator keeps lighting red, the battery defective. Do not use the battery!

The LED indicator will display the battery charge status:

LED Indicator

Battery Charge Status

Battery is empty

Battery is full

Step 3. Сonnect the charger to the mains supply

  1. Connect the Micro-USB plug of the USB cable to the port of the charger.
  2. Connect the Micro-USB plug to the DC adapter.
  3. Insert the plug of the mains adapter to the 100-240 V socket.
  4. Remove the full battery from the charging platform by lifting the lever.

Removing the infrared illuminator installed on the IPS 7A battery is optional, and the infrared illuminator only works in conjunction with the riflescope.

* If the charger is not connected to the mains, the display shows the current state of charge of the battery for 15 seconds. When the power is connected, the indicator shows the current state of the battery and the process of its charging.
