Helion 2 Pro
Manual
Helion 2 Pro

Table of contents

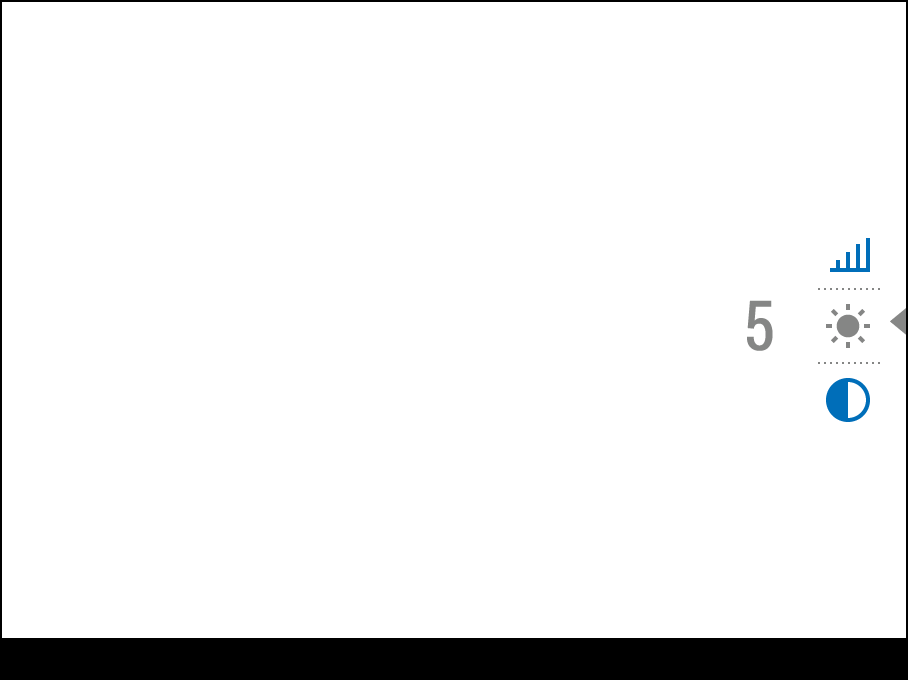

Quick Menu Functions

The quick menu allows you to change the base settings (display brightness and contrast) and use the smooth digital zoom and stadiametric rangefinder.

  • Enter the menu with a short press of the M (9) button.
  • To toggle between the functions below, press successively the M (9) button.

Brightness – press the UP (10) / DOWN (8) buttons to change display brightness from 0 to 20.

Contrast  – press the UP (10) / DOWN (8) buttons to change display contrast from 0 to 20.

Base mode  allows you to select one of the three observation modes (Forest, Rocks, Identification) as a base for the User mode.

Smooth digital zoom  Press the UP (10) / DOWN (8) buttons to change digital zoom value from 2.5x to 20x.

Smooth digital zoom is in 0.1 increments.

Stadiametric rangefinder  – press the UP (10) / DOWN (8) buttons to change the distance between special markers to determine the distance to the observed object. Please refer to section Stadiametric Rangefinder for more details.

  • To exit the menu, press and hold the M (9) button, or wait 10 seconds to exit automatically.
