Trail 2 LRF

Table of contents

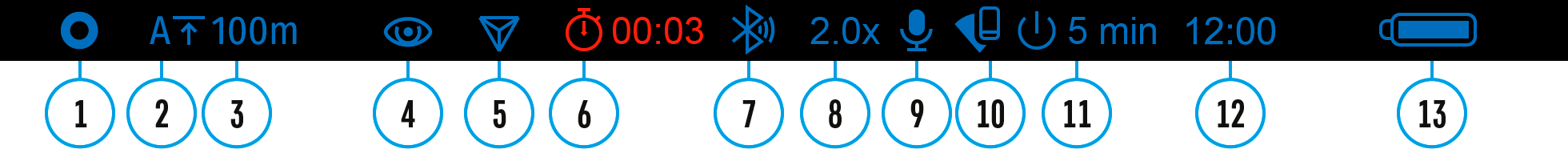

Status Bar

The status bar is located in the lower part of the display and shows current operating status of the riflescope, including:

1. Image inversion mode (only Black Hot)

2. Current zeroing profile (for example А)

3. Zeroing distance (for example, 100 m)

4. Operating mode (for example Forest)

5. Image Detail Boost (displayed when the function is on)

6. Calibration mode (in the automatic calibration mode, three seconds before automatic calibration a countdown timer is shown in place of the calibration mode icon)

7. Bluetooth:

 - Bluetooth pairing

- the device with Bluetooth is connected

8. Current full magnification (for example 2.0x)

9. Microphone

10. Wi-Fi connection status

11. Function “Auto shutdown” (for example 5 min)

12. Current time

13. Power indication:

  • Battery charge level  (if the riflescope is powered by the Battery Pack).
  • External battery power indicator  (if the riflescope is powered by an external power supply).
